THE BIGGEST TANK YOU CAN GET WITHOUT JOINING THE MILITARY.

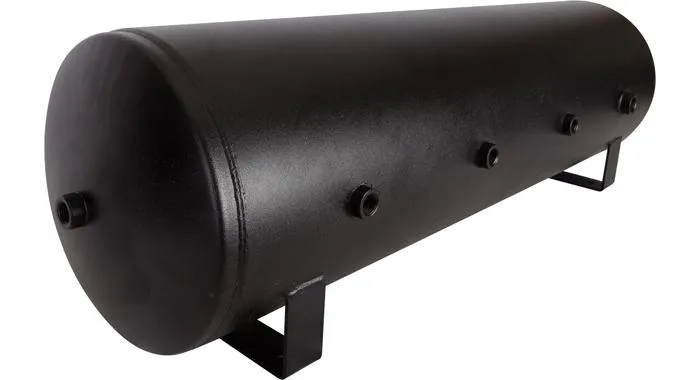

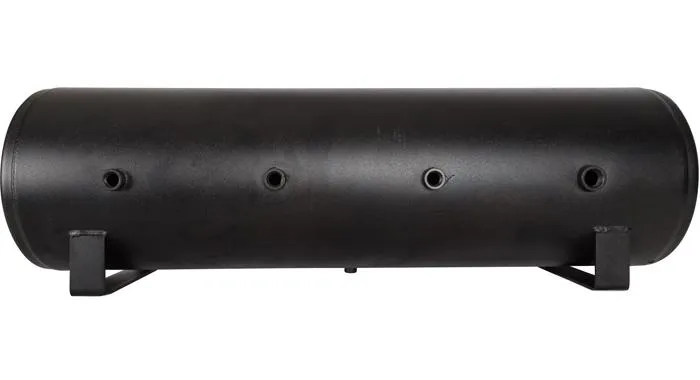

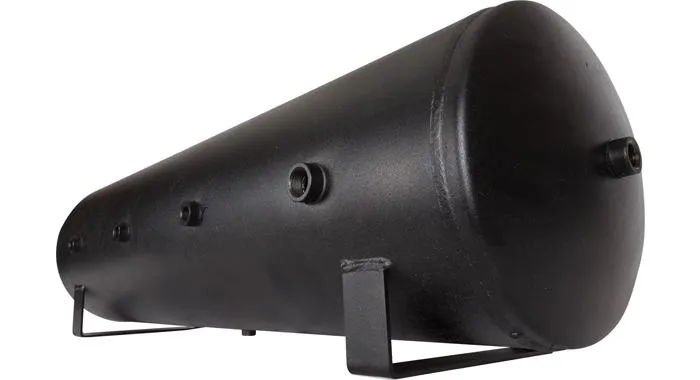

This meticulously engineered steel air tank is a crucial component for your pneumatic applications, whether it involves air horns, air suspension, or onboard air systems, ensuring they function at their pinnacle. Adorned with a sleek black powder coat finish, this tank exudes a polished look while offering a robust shield against rust and corrosion, thus promising a lasting performance across diverse operational landscapes.
Equipped with a versatile port configuration comprising five 1/2" NPT ports, one 3/4" NPT port, and one 1/4" NPT port, this air tank exemplifies connectivity excellence, making it a flexible choice for an array of pneumatic setups. The substantial maximum working pressure of 150 PSI caters to a wide spectrum of pneumatic requirements, ensuring a steadfast performance at every instance. The internal rust inhibitor coating augments the tank's defense against corrosion, thereby boosting its longevity. Abiding by the stringent SAE J10 & FMVSS 121 standards, the HornBlasters 20 Gallon 7 Port Steel Air Tank is a testimony to superior quality.
- Optimized Flow: Tailored for high-flow scenarios, it's the heart of majestic train horns, powerful air suspensions, and proficient air tool operations.
- Precision Engineering: Featuring seven strategically placed high-flow ports, ensuring an even, bottleneck-free delivery of air when it matters most.
- Reliable Under Pressure: A max working capacity of 150 PSI and an impressive burst threshold of 750 PSI make this tank the cornerstone of any 150 PSI air setup.
- Crafted in Excellence: Not just made, but meticulously crafted in the USA. Compliant with SAE J10 & FMVSS 121 standards, enveloped in a semi-gloss black finish and fortified with an internal rust inhibitor for lasting durability.
- Sealed with Trust: Your investment is safeguarded by our 2-year manufacturer's defect warranty.
As an important safety precaution, a safety blow-off valve should be installed with any air system. A safety blow-off valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blow-off valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.
For example, 150 PSI systems require a and 120 PSI systems require a .
- HornAir 20-gallon 7 port air tank
- Part Number: TA-2008H
- Volume: 20 gals (76 L)
- 1/2" NPT Ports: 5
- 3/4" NPT Ports: 1
- 1/4" NPT Ports: 1
- Mounting Hole Dimensions: 30.6" x 8"
- Burst Pressure: 750 PSI

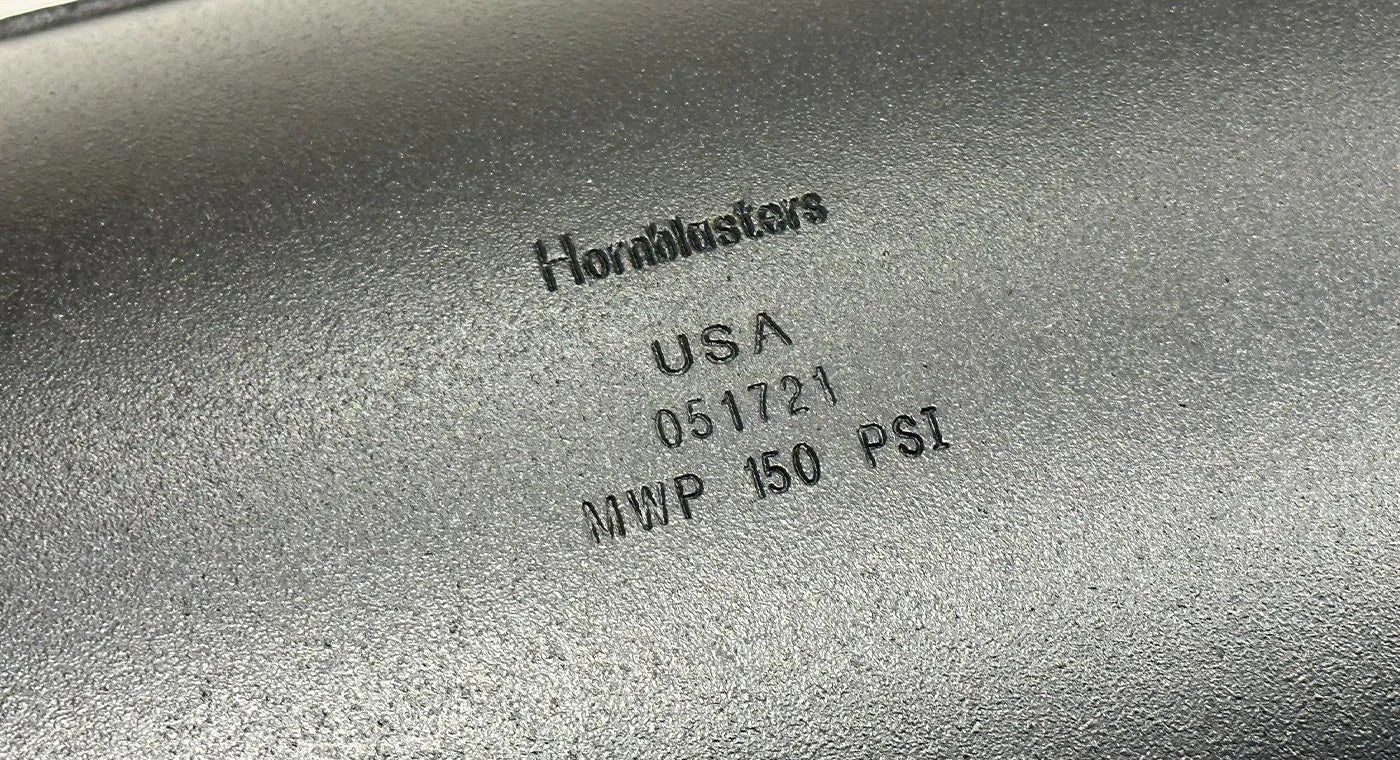

- Working Pressure: 150 PSI
- Tank Length: 44″ (1117.6 mm)
- Tank Diameter: 12″ (304.8 mm)
- Tank Height: 13″ (330.2 mm) (With Legs)
20-Gallon Air Tank Dimensional Drawing
-
