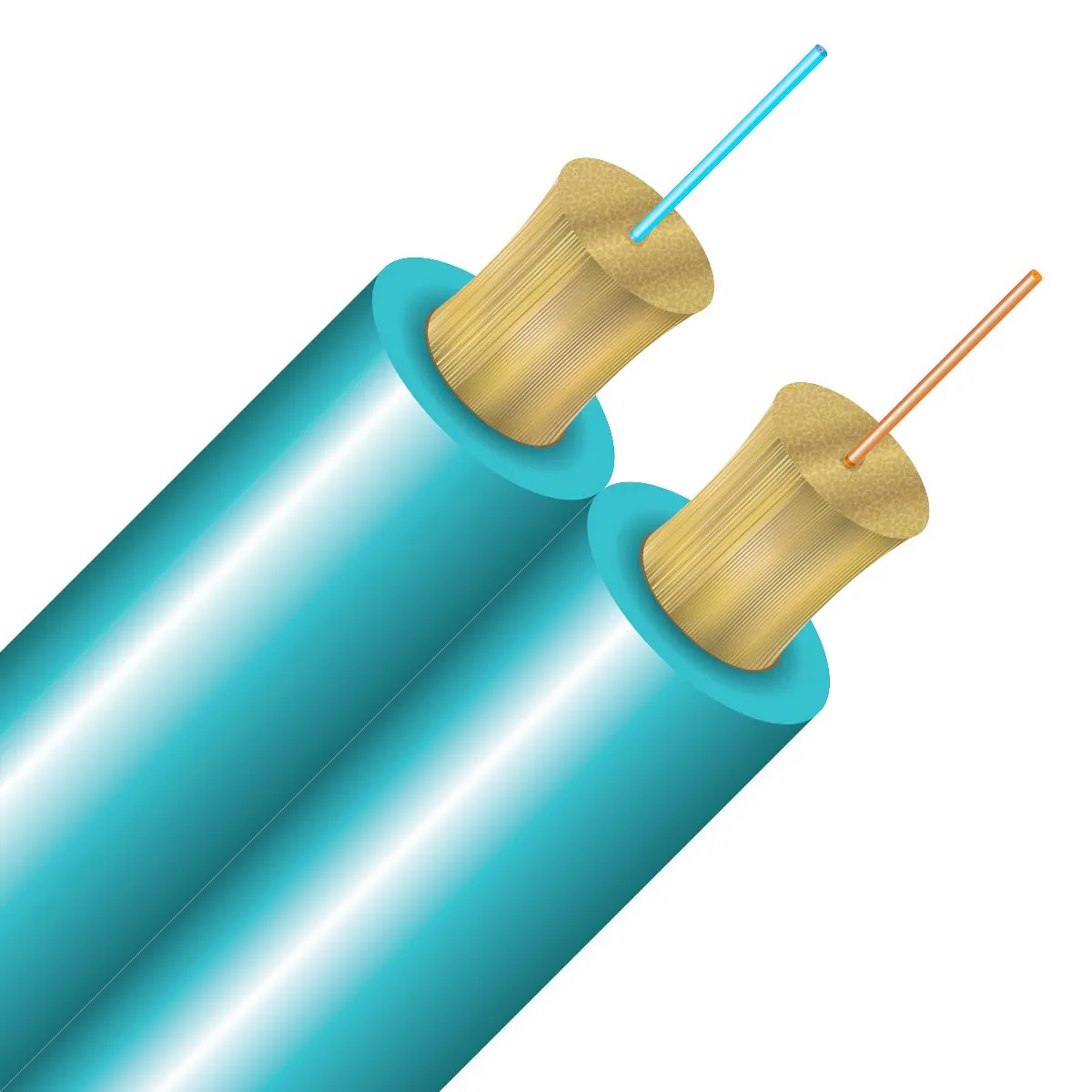

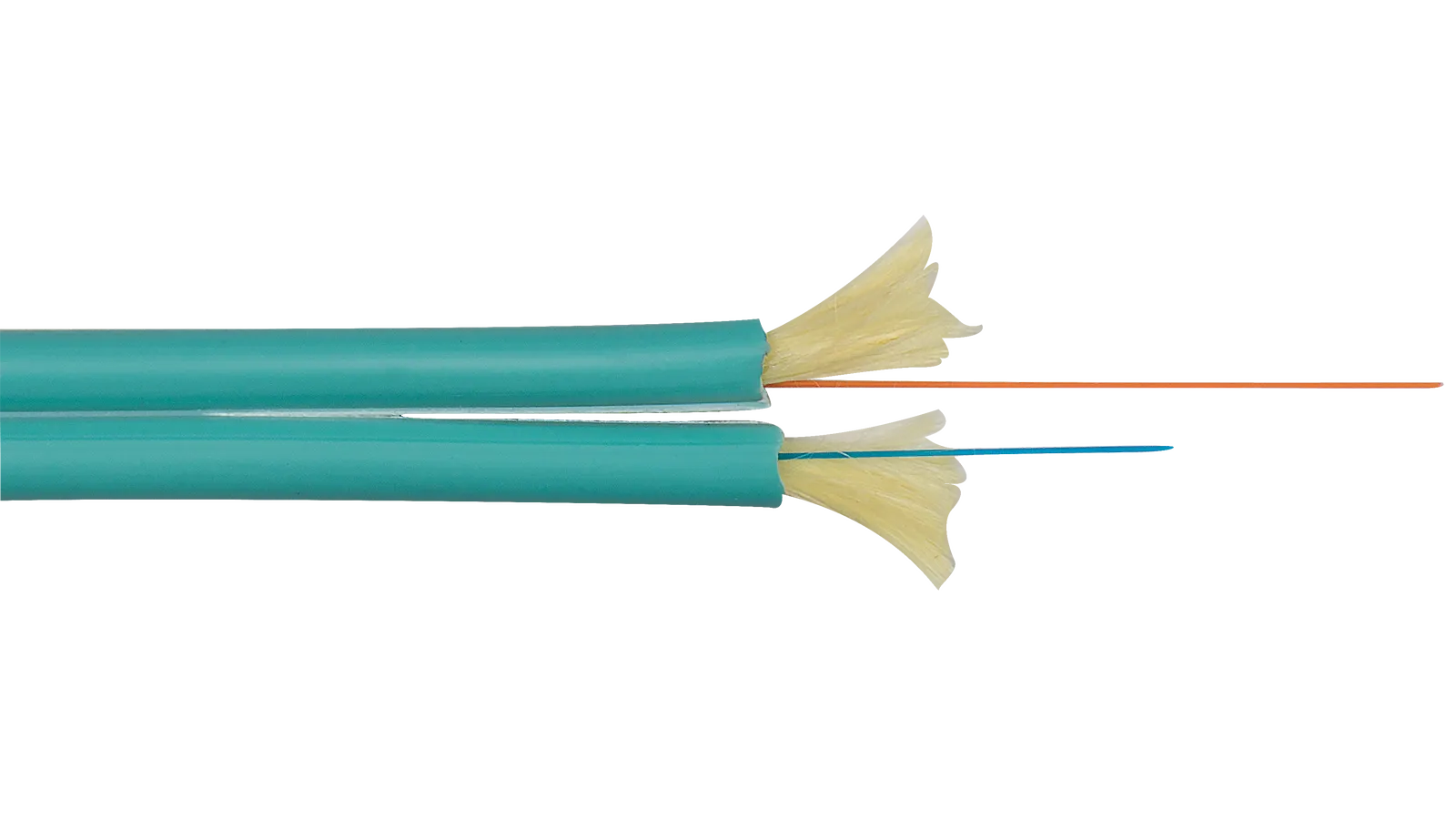

Cleerline SSF™ advanced optical glass fibers are much stronger, safer, and faster terminating than typical fibers. This duplex style cable provides the ultimate in durability and bend with ease of termination. SSF fibers are always protected at the glass level as a result of their integral polymeric coating, increasing both bend and tensile strength to unprecedented levels. Cleerline SSF fibers are compatible with all common connector systems on the market for standard 50/125 multimode and 9/125 Singlemode fibers.
-
Features
- High mechanical strength and superior fatigue & durability
- Integral coating eliminates stripping, provides glass protection
- 10,000x the bend of standard fiber, Fatigue constant (Nd) >30
- Increased safety factor due to the incredible bend insensitivity
- Glass fiber remains protected at all times from the elements
- Simplified termination process designed for ease of use
- Ultra low Attenuation loss on tight bend radius
- Exclusive 250um Soft peel jacket identifier
-
Specifications
- Fiber
- Number of Fibers: Duplex = 2
- 50/125 Multimode OM3
- 250um "Soft Peel" coating (1 = Blue, 2 = Orange)
- Color Coding per TIA/EIA 568C
Jacket - Riser Rated PVC / Plenum Rated PVC UV I/O / LSZH
- 3.0mm x 2 unit diameter w/strip peel
- Aqua jacket = OM3, Sequential footage markings
- Kevlar (Plenum water blocking yarns Indoor/Outdoor)
Physical Data - Storage Temperature Range: -40°C to 85 °C
- Operating Temperature Range: -20°C to 75 °C
- Max Tensile Load for Installation: 1000(225) N(lbf)
- Max Tensile Load Long term: 500(112) N (lbf)
- Min. Bend Radius, Unloaded: 1 x OD (1 x 3.0mm)
- Cable Outside Diameter, Nominal: 3.0mm x2 (6.2mm)
- Cable Package: 1000ft/304.8m Reel
- Rating: FT4-Riser / FT6-Plenum / LSZH
- Crush Resistance (TIA/EIA 455-41A): 100 kgf/mm
- Impact Resistance (TIA/EIA 455-25B): 1500 Impact cycles
- Flexing @ 90 degree (TIA/EIA 455-104A): 2000 flexing cycles
-
Warranty
- Lifetime
-
